Belyst

WL Series

Nilai TKDN :
P1.2 : 21.96%
P1.5 : 23.81%
P1.8 : 27.50%
P2.5 : 32.32%
P3.0 : 34.55%
P4.0 : 37.50%

Feature

  • High Definition Image Quality4The ultra-high resolution of fine-pitch LEDs brings exquisite display effects, and it is the perfect embodiment of the new generation of ultra-high-definition LED display technology.
  • Easy to Achieve 4K or higher ResolutionThe fine-pitch LED display can be spliced in any size and in any direction, and a variety of video source specifications can be selected, and it is easy to realize FHD and 4K large screens.
  • More Delicate Image DisplayMore Delicate Image DisplayUsing high-quality black body LED lights, with a black mask, the contrast ratio is as high as 3000:1, making the picture more clear, delicate and bright
  • Professional Image With High Refresh Rate – Up to 3840Hz high refresh rate keeps it high quality display performance even under professional camer-a,no water waves or screen flashing, totally meet the live show requirements.
  • High Quality Material – Details determine success or failure, only high-quality
    materials are used
  • Excellent Performance – The superior contrast with deep black PCB to show vivid image details. High refresh rate to decrease moire-effect even in the shoot of professional camera. Low brightness with high gray scale and full HD processing to meet the high standard of demands. ± 160°view angle brings a truly amazing image with highly color consistency from any angles.

Specifications

WL-12

WL-15

WL-18

WL-25

WL-40

Pixel Pitch(mm)

1.25mm

1.53mm

1.86mm

2.5mm

4.0mm

Pixel Density (pixels/sqm)

640000

429975

288444

160000

62500

Cabinet Resolution

512x384

416x312

344x258

256x192

160x120

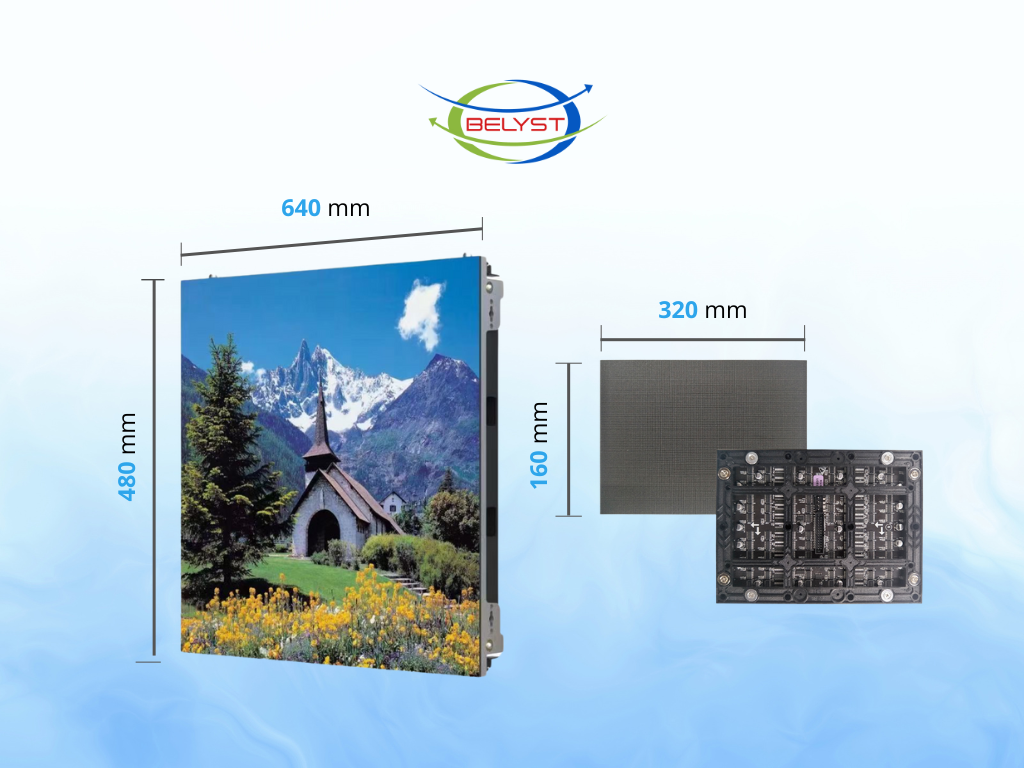

Cabinet Dimension

640x480

640x480

640x480

640x480

640x480

Lamp Type

SMD1010

SMD1212

SMD1515

SMD2121

SMD2121

Module Size(mm)

320x160

320x160

320x160

320x160

80x40

Module Resolution(mm)

256x128

208x104

172x86

128x64

172x86

Optimum Viewing Distance

1.2m-15m

1.5m-20m

1.8m-28m

2.5m-30m

5m -50m

Horizontal Viewing Angle

≥160°

≥160°

≥160°

≥160°

≥160°

Vertical Viewing Angle

≥140°

≥140°

≥140°

≥140°

≥140°

Avg Power Consumption

237w/m2

225w/m2

155w/m2

127w/m2

125w/m2

Max. Power Consumption

711w/m2

675w/m2

470w/m2

385w/m2

380w/m2

Refresh Rate

3840Hz

3840Hz

3840Hz

3840Hz

3840Hz

White Balance Brightness

450cd/m2

450cd/m 2

600cd/m2

600cd/m2

450cd/m 2

Frame Rate

50/60

50/60

50/60

50/60

50/60

Brightness Adjustment

16 levels

16 levels

16 levels

16 levels

16 levels

Cabinet Weight

6.5±0.05kg

6.5±0.05kg

6.5±0.05kg

7.0±0.05kg

8.0±0.05kg

Operating Temp(°C)

-20°C-60°C

Storage Temp(°C)

-25°C-60°C

Humidity Range

10%-90%, Non-condensing

Life Time

75,000-100,000hr
